Page Updated 06/27/05
1965 JTWC ANNUAL TYPHOON REPORT
of LUCY Chapter V
ONLY 1 of 21 1965 typhoons presented here.
- TYPHOON LUCY - 150600Z TO 230600Z AUGUST 1965
- I. DATA
- A. Statistics
- 1. Number of warnings issued - 33
- 2. Number of warnings with typhoon intensity - 27
- 3. Total distance traveled during tropical warning period - 2583 mi
- B. Characteristics as a typhoon
- 1. Minimum observed SLP - 940mbs at 200300Z
- 2. Minimum observed 700mb height - 2609m. at 190240Z
- 3. Maximum surface wind 150 kts (From Best Track)
- 4. Maximum radius of surface circulation - 425 mi
- A. Statistics
- II. DEVELOPMENT
- A. Initial impetus - Fracture of southwestern tip of Polar trough in mid levels
- B. Initial surface vortex
- 1. A junction vortex could be tracked northwestward from 130000Z. However, just prior to 150600Z a reconnaissance aircraft proceeding northward from the junction vortex encountered light and variable winds and then increasing westerly winds, followed by the initial fix on LUCY.. Therefore, LUCY actually formed in the embedded vortex.
- 2. Surface pressure less than 1007mbs
- C. 200mb flow above surface vortex
- 1. Initial - northeasterly
- 2. Upon reaching typhoon intensity - southerly
- III. FINAL DISPOSITION
- A. Became extratropical
bottom of page 158
EYE FIXES TYPHOON LUCY
bottom of page 159
| FIX NO, | TIME | Position | UNIT-METHOD -ACCY | FLT LVL | FLT LVL WND | OBS SFC WND | OBS MIN SLP | MIN 700MB HGT | FLT LVL TT/TD | REMARKS | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 112348Z | 11.0N | 177.0E | TIROS | -- | -- | -- | -- | -- | -- | STAGE A DIA X ENDS X OVC AREA FIVE DEG DIA |
| 2 | 150610Z | 15.1N | 170.3E | 54-P-P3 | 700mb | -- | 60 | 993 | 3054 | 16/-- | EYE CIRC 25 MI DIA |
| 3 | 152052Z | 16.8N | 167.8E | VW1-P-P5 | 750ft | -- | 70 | 993 | 3101 | 27/23 | EYE CIRC 18 MI DIA |
| 4 | 160250Z | 17.6N | 166.2E | 54-P-P2 | 700mb | -- | 100 | 998 | 3008 | 14/-- | EYE CIRC 15 MI DIA |
| 5 | 160915Z | 19.2N | 163.8E | VW1-R-P5 | 700mb | -- | -- | -- | -- | -- | EYE CIRC 22 MI DIA |
| 6 | 161000Z | 18.9N | 163.3E | VW1-R-U | 700mb | -- | -- | -- | -- | -- | EYE REFORMED |
| 7 | 161447Z | 19.6N | 162.4E | VW1-R-P5 | 700mb | -- | -- | -- | -- | -- | EYE CIRC 13 MI DIA |
| 8 | 170020Z | 21.4N | 159.5E | 54-P-P2 | 700mb | -- | 120 | 993 | 3060 | 13/-- | EYE CIRC 10 MI DIA |
| 9 | 170215Z | 21.7N | 159.1E | 54-P-P2 | 700mb | -- | 120 | -- | 2990 | 16/-- | EYE CIRC 10 MI DIA |
| 10 | 170900Z | 23.2N | 156.6E | VW1-R-P5 | 1500ft | -- | -- | -- | -- | -- | EYE CIRC 12 MI DIA |
| 11 | 171445Z | 24.1N | 154.3E | VW1-R-P10 | 800mb | -- | -- | -- | -- | -- | EYE CIRC 7 MI DIA |
| 12 | 172130Z | 24.8N | 152.5E | 54-R-P1 | 700mb | 80 | 150 | -- | -- | -- | EYE CIRC 5 MI DIA |
| 13 | 180300Z | 24.9N | 152.0E | 54-R-P5 | 700mb | 75 | 150 | -- | -- | -- | EYE CIRC 5 MI DIA |
| 14 | 180900Z | 25.9N | 148.4E | VW1-R-P10 | 951mb | -- | 90 | -- | -- | -- | EYE ELIP 34 X 30 NW-SE |
| 15 | 181445Z | 26.8N | 146.6E | VW1-R-P15 | 905mb | 50 | -- | -- | -- | -- | CONCENTR EYE CIRC 4 MI DIA |
| 16 | 182100Z | 26.8N | 146.6E | 54-P-P7 | 700mb | 65 | 85 | 946 | 2630 | 18/14 | EYE CIRC 10 MI DIA |
| 17 | 190123Z | 27.0N | 144.0E | TIROS | -- | -- | -- | -- | -- | -- | STAGE X, DIA 5, BNDS 3 |
| 18 | 190240Z | 26.9N | 143.4E | 54-P-P5 | 700mb | 90 | 90 | 944 | 2609 | 18/11 | EYE CIRC 20 MI DIA |
| 19 | 190900Z | 27.1N | 142.2E | VISUAL | -- | -- | 110 | -- | -- | -- | CHICHI JIMA IN S EDGE WALL CLD EST EYE 4 MI N |
| 20 | 190945Z | 27.3N | 142.2E | VW1-R-P2 | 950mb | 28 | 40 | -- | -- | -- | EYE CIRC 21 MI DIA |
| 21 | 191445Z | 27.6N | 141.2E | VW1-R-P2 | 700mb | -- | -- | -- | -- | -- | EYE CIRC 17 MI DIA |
| 22 | 192156Z | 28.3N | 140.5E | 54-P-P2 | 700mb | -- | 150 | 960 | 2725 | 14/- | EYE CIRC |
| 23 | 200300Z | 28.9N | 140.0E | 54-P-P2 | 700mb | 70 | 150 | 940 | 2728 | -- | EYE CIRC 15 MI DIA |
| 24 | 200845Z | 29.4N | 139.6E | VW1-R-P10 | 947mb | 95 | 90 | -- | -- | -- | EYE CIRC 27 MI DIA |
| 25 | 201515Z | 30.7N | 139.4E | VW1-R-P10 | 700mb | -- | -- | -- | -- | -- | -- |
| 26 | 202138Z | 31.1N | 138.3E | 54-P-P2 | 697mb | 90 | 70 | 953 | 2691 | 16/13 | EYE CLD CIRC 40 MI DIA WALL WK ALL QUADS |
| 27 | 210000Z | 31.1N | 138.0E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE DIA 70 KM |
| 28 | 210203Z | 31.2N | 137.8E | LND RDR | -- | -- | -- | -- | -- | -- | EYE CLEAR |
| 29 | 210216Z | 31.0N | 137.5E | TIROS | -- | -- | -- | -- | -- | -- | STAGE X DIA 4 BNDS 4 |
| 30 | 210230Z | 31.3N | 137.6E | 54-P-P2 | 700mb | 85 | 110 | 953 | 2685 | 17/10 | EYE CIRC 35 MI DIA WALL CLD MDT 6 MI THK ALL QUADS |
| 31 | 210300Z | 31.2N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | EYE DIA 40 KM |
| 32 | 210400Z | 31.3N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE DIA 60 KM |
| 33 | 210500Z | 31.4N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 34 | 210600Z | 31.4N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 35 | 210800Z | 31.6N | 137.6E | LND RDR | -- | -- | -- | -- | -- | -- | EYE CLEAR EYE DIA 50 KM |
| 36 | 210900Z | 31.6N | 137.6E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 60 KM |
| 37 | 210900Z | 31.6N | 137.4E | VW1-R-P10 | 207mb | 60 | 85 | -- | -- | -- | EYE CIRC 32 MI DIA |
| 38 | 211000Z | 31.6N | 137.6E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 60 KM |
| 39 | 211100Z | 31.7N | 137.5E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 60 KM |
| 40 | 211200Z | 31.8N | 137.6E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 41 | 211300Z | 31.8N | 137.6E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 42 | 211400Z | 32.0N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 16 KM |
| 43 | 211445Z | 32.2N | 138.0E | VW1-R-P15 | 701mb | 47 | -- | -- | -- | -- | EYE CIRC 32 MI DIA |
| 44 | 211500Z | 32.3N | 137.8E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 40 KM |
| 45 | 211600Z | 32.3N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE DIA 50 KM |
| 46 | 211700Z | 32.6N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 47 | 211800Z | 32.5N | 137.8E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 48 | 211900Z | 32.6N | 137.8E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 49 | 212000Z | 32.0N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 50 | 212100Z | 33.0N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE 60 KM X 40 NNE-SSW |
| 51 | 212200Z | 33.1N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 52 | 212235Z | 33.2N | 137.6E | 54-R-P3 | 18,000 ft | -- | -- | -- | -- | -- | EYE 35 MI DIA |
| 53 | 212300Z | 33.3N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR EYE & CIRC |
| 54 | 212330Z | 33.3N | 137.5E | 54-P-P2 | 700mb | -- | -- | 965 | 2777 | 16/-- | EYE CIRC 35 MI DIA |
| 55 | 220000Z | 33.4N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CIRC |
| 56 | 220100Z | 33.5N | 137.7E | LND RDR | -- | -- | -- | -- | -- | -- | EYE CLEAR |
| 57 | 220137Z | 33.5N | 137.5E | TIROS | -- | -- | -- | -- | -- | -- | STAGE X DIA 5 BNDS 4 EYE VSBL |
| 58 | 220200Z | 33.6N | 137.5E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CIRC |
| 59 | 220300Z | 33.8N | 137.7E | 54-P-P2 | 700mb | -- | -- | 968 | 2789 | 17/-- | EYE CIRC 30 MI DIA |
| 60 | 220300Z | 33.7N | 137.9E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 61 | 220400Z | 33.9N | 137.8E | 54-P-2 | 700mb | -- | -- | 979 | 2792 | 16/-- | EYE CIRC 30 MI DIA |
| 62 | 220400Z | 33.8N | 138.0E | LND RDR | -- | -- | -- | -- | -- | -- | CLR EYE |
| 63 | 220500Z | 34.1N | 137.9E | 54-P-P2 | 700mb | -- | -- | 987 | 2798 | 16/-- | EYE CIRC 30 MI DIA |
| 64 | 220500Z | 33.9N | 138.2E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 65 | 220600Z | 34.IN | 138.2E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 66 | 220700Z | 34.3N | 138.3E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 67 | 220800Z | 34.4N | 138.4E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR EYE CLEAR |
| 68 | 220900Z | 34.6N | 138.3E | VW1-R-P5 | 700mb | -- | 50 | -- | -- | -- | EYE CIRC 30 MI DIA |
| 69 | 221015Z | 34.7N | 138.7E | VW1-R-U | 700mb | -- | -- | -- | -- | -- | -- |
| 70 | 221100Z | 34.8N | 138.8E | LND RDR | -- | -- | -- | -- | -- | -- | SML BUT CLR EYE |
| 71 | 221200Z | 34.9N | 138.9E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 72 | 221300Z | 35.2N | 139.1E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR CLSD EYE |
| 73 | 221400Z | 35.4N | 139.2E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR CLSD EYE |
| 74 | 221500Z | 35.4N | 139.1E | LND RDR | -- | -- | -- | -- | -- | -- | MT FUJI RDR |
| 75 | 230320Z | 36.7N | 141.6E | 54-P-P2 | 500mb | -- | -- | -- | -- | -- | -- |
bottom of page 164
TYPHOON LUCY 15 - 23 AUG 1965
POSITION AND FORECAST VERIFICATION DATA
| DTG | STORM POSITION | 24 HOUR ERROR | 48 HOUR ERROR | |
|---|---|---|---|---|
| LAT. | LONG. | DEG. DISTANCE | DEG. DISTANCE | |
| 150600Z | 15.0N | 170.3E | -- | -- |
| 151200Z | 15.6N | 169.5E | -- | -- |
| 151800Z | 16.3N | 168.4E | -- | -- |
| 160000Z | 17.1N | 167.0E | -- | -- |
| 160600Z | 18.1N | 165.0E | 089-196 | -- |
| 161200Z | 19.2N | 162.9E | 096-295 | -- |
| 161800Z | 20.2N | 161.3E | 098-350 | -- |
| 170000Z | 21.3N | 159.6E | 115-216 | -- |
| 170600Z | 22.5N | 157.7E | 130-156 | 103-496 |
| 171200Z | 23.6N | 154.5E | 262-154 | 106-587 |
| 171800Z | 24.4N | 153.4E | 174-092 | 104-674 |
| 180000Z | 25.2N | 151.3E | 167-090 | 120-442 |
| 180600Z | 25.6N | 149.3E | 104-032 | 123-299 |
| 181200Z | 26.3N | 147.4E | 012-050 | 273-130 |
| 181800Z | 26.8N | 145.6E | 325-070 | 149-95 |
| 190000Z | 26.7N | 144.1E | 312-042 | 122-98 |
| 190600Z | 27.0N | 142.7E | 100-222 | 326-99 |
| 191200Z | 27.4N | 141.7E | 292-170 | 298-172 |
| 191800Z | 27.8N | 140.7E | 288-225 | 287-275 |
| 200000Z | 28.5N | 140.2E | 281-240 | 273-287 |
| 200600Z | 29.2N | 139.7E | 249-221 | 147-80 |
| 201200Z | 30.1N | 139.4E | 228-182 | 277-486 |
| 201800Z | 31.0N | 139.2E | 230-230 | 278-565 |
| 210000Z | 31.1N | 138.1E | 242-106 | 277-500 |
| 210600Z | 31.4N | 137.5E | 284-80 | 260-405 |
| 211200Z | 31.9N | 137.6E | 273-106 | 243-338 |
| 211800Z | 32.6N | 137.8E | 354-234 | 245-409 |
| 220000Z | 33.4N | 137.6E | 310-212 | 261-332 |
| 220600Z | 34.1N | 138.0E | 308-205 | 287-226 |
| 221200Z | 34.9N | 138.9E | 260-245 | 278-244 |
| 221800Z | 35.8N | 139.7E | 335-165 | 042-502 |
| 230000Z | 36.3N | 140.9E | 275-242 | 009-230 |
| 230600Z | 37.2N | 142.1E | 318-064 | 025-250 |
AVERAGE 24 HOUR ERROR 169 MI
AVERAGE 48 HOUR ERROR 329 MI
bottom of page 165

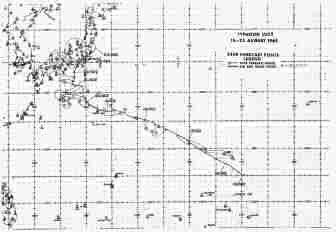

24HR FORECAST POSITSTyphoon Lucy 15 - 23 Aug 1965
bottom of page 166
